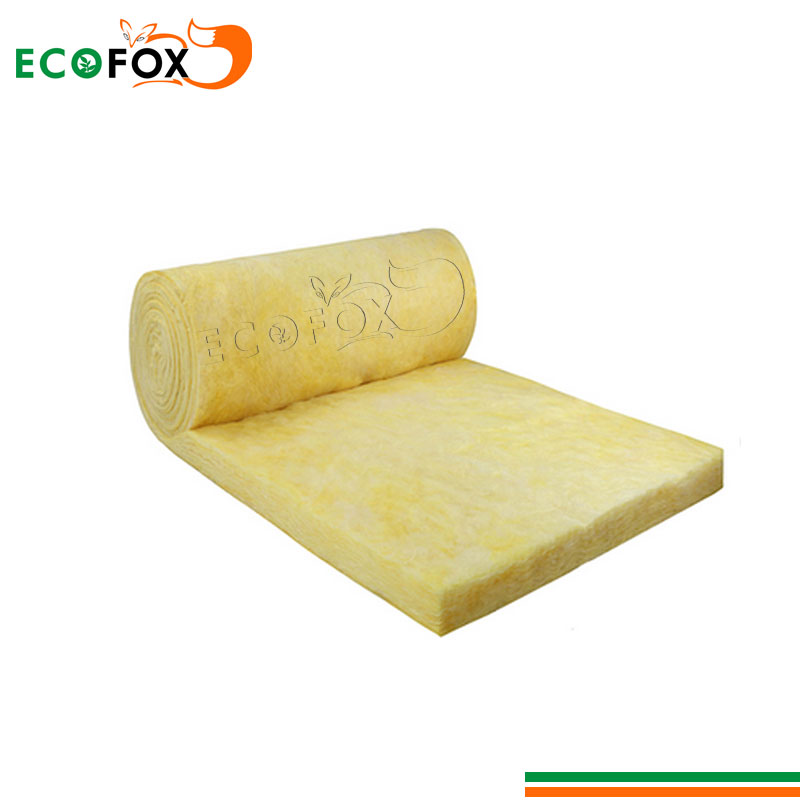

ECOFOX® Glass wool blankets, or glass wool rolls, are an efficient thermal and acoustic insulation material widely used in construction, industry, and transportation. Made from high-quality glass fibres, it offers excellent insulation properties and sound absorption, making it an ideal choice for modern construction projects.
| Max Service Temperature | 450˚C Outer foil temperature limited to 100˚C |
ASTM C411 |
| Combustibility | Non-combustible | ASTM E84 |
| Rigidity | Semi-Rigid | ASTM C1101 |
| Shot Content | Free of shot | ASTM C612 |
| Fungi Growth | It does not encourage fungi growth | ASTM C665 |
| NRC Value | 0.75 - 1.24 | ASTM C423 |
| Thermal Conductivity | < 0.044 W/m·K | ASTM C518 |
| Moisture Absorption | Less than 0.2% by volume | ASTM C533 |
| Thickness (mm) | Thermal Resistance ( ㎡ K/W) at 25˚C mean temperature | |||||
| 13 | 16 | 18 | 20 | 24 | 32 | |
| 25 | 0.61 | 0.641 | 0.658 | 0.694 | 0.714 | 0.765 |
| 40 | 0.976 | 1.026 | 1.053 | 1.111 | 1.143 | 1.214 |
| 50 | 1.22 | 1.282 | 1.316 | 1.389 | 1.429 | 1.49 |
| 75 | 1.829 | 1.923 | 1.974 | 2.083 | 2.143 | 2.21 |
| 90 | 2.195 | 2.308 | 2.368 | 2.5 | 2.571 | 2.642 |
| 100 | 2.439 | 2.564 | 2.632 | 2.778 | 2.857 | 2.928 |
