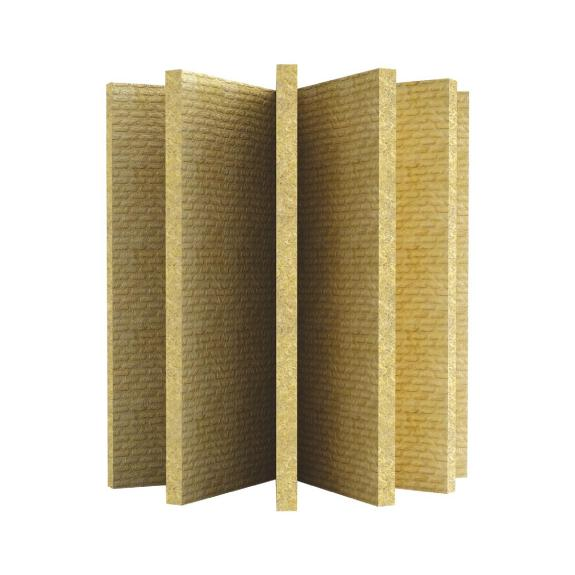

As a high-performance inorganic fiber material, rock wool board has become one of the core materials in the field of modern construction with its excellent fireproof, thermal insulation and sound insulation properties.
Rock wool board is made of basalt as the main raw material and is made by high-temperature melting, fiberization and binder curing. It has the following core advantages:
Fireproof performance: rock wool itself is an A1-level non-combustible material with a fire resistance limit of up to 2 hours. It will not release toxic gases in a fire and is the first choice for building fire isolation zones.
Insulation and heat insulation: The thermal conductivity is as low as 0.033-0.043W/(m·K), which can effectively reduce building energy consumption and is suitable for insulation scenes such as exterior walls and roofs.
Sound insulation and noise reduction: The porous fiber structure can absorb sound wave energy and is widely used in floor sound insulation, industrial equipment noise reduction and other fields.
Environmental protection and health: No volatile harmful substances, excellent hydrophobicity, can prevent moisture penetration and extend service life.
The following are the specific performance indicators of rock wool board:
|
Performance Indicators |
Rock wool board performance |
Industry standard reference |
|
Fire rating |
A1 non-combustible (ISO 1182), fire resistant up to 1000℃ |
China GB 8624, EU EN 13501 |
|
Thermal insulation performance |
Thermal conductivity 0.033-0.043 W/(m·K) |
Better than glass wool (0.035-0.041) |
|
Hydrophobicity |
Hydrophobicity ≥98% |
No additional waterproof layer required |
|
Mechanical strength |
Compressive strength ≥10kPa (EN 12543-4) |
Suitable for complex installation environments |
|
Environmental certification |
Content: more than 95% recyclable materials |
Comply with international standards such as RoHS and REACH |

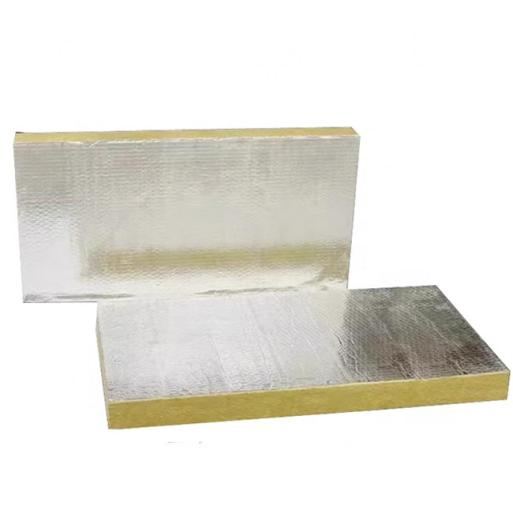

Surface: Rock wool board with or without aluminum foil veneer.
Density: usually 40-200kg/m³.
Thickness: usually 25-200mm.
Rock wool board has penetrated into multiple fields with its versatility:
Construction field: external wall insulation system, fire isolation belt, floor sound insulation layer, taking into account energy saving and safety.
Industrial field: thermal insulation of equipment such as pipelines and boilers, high temperature resistance is suitable for extreme environments.
Transportation field: subway and tunnel sound insulation projects, reducing the impact of noise on the urban environment.
Other fields: It can also be used for the growth of hydroponic plants in greenhouses.
1. Core purchasing standard certification mark:
a. Certification mark
Fireproof level: Confirm A1 certification.
Environmental certification: RoHS, REACH, ISO 14001 environmental management system certification.
b. Physical properties: Thermal conductivity ≤0.043 W/(m·K), Tensile strength ≥4.0 kN/m
2. Rock wool board supplier selection suggestions:
a. Brand reputation: give priority to companies with complete certificates;
b. Localized service: companies that provide free samples, technical consultation and after-sales support.
c. Customization capability: thickness, size, density, surface treatment (such as aluminum foil coating) can be customized according to project requirements.
In short, as the global construction and industrial fields continue to increase their requirements for safety, energy saving, and environmental protection, rock wool boards will continue to lead the industry upgrade with their irreplaceable technical advantages. If you have procurement needs for high-quality rock wool boards or want to know more details, please contact us IKING GROUP and let us provide you with high-quality customized services.
